FULL SIZE SHIFTER KARTS

https://factorykarts.odoo.com/web/image/product.template/181/image_1920?unique=10fada8

0.00 0.0 USD 0.00

0.00

Not Available For Sale

  • Shifter Kart Engine
  • Seat Size
  • Tires
  • MyChron

This combination does not exist.

Product Description

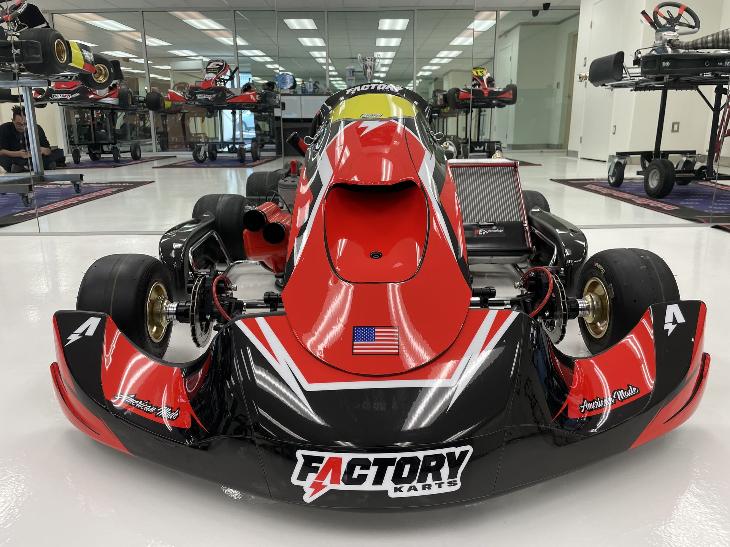

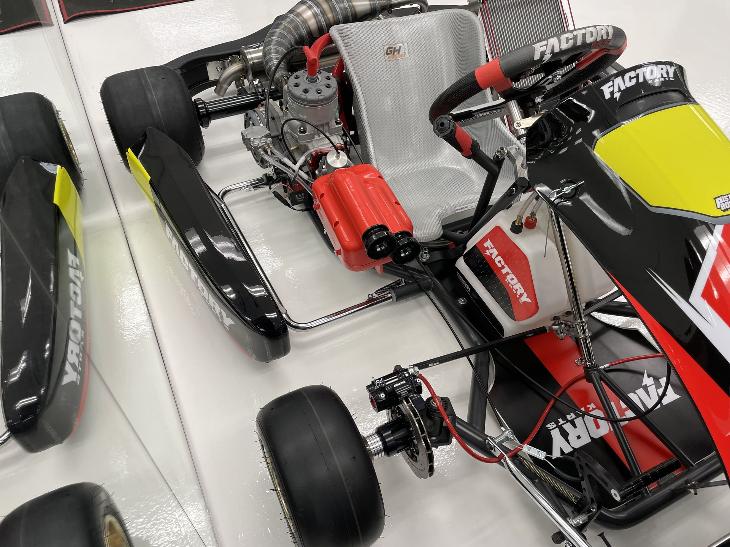

CHASSIS:

2024 full size shifter chassis

  • All American ISO 4130 Cr-Mo Tubing, 1.25" OD; Highest Quality chassis material on the market
  • Special Chassis geometry, designed and developed by Billy Musgrave to take advantage of the properties of American Steel
  • Bent utilizing a cnc-tubing bender; we then cut, miter, & prepare the tubes at our facility here in Riverside, Ca
  • The frames are all tig-welded by hand in our own chassis fixtures
  • Chassis includes Magnesium OTK MXJ Wheels for the best heat dissipation and fast laps deep into the race
  • Proprietary rear bearing cassette design, that reduces rear tire wear, as well as incorporates maximum adjustability
  • One-of -a-kind cnc Aluminum fuel tank holder with sliding steering wheel position
  • Unique seat mounting solutions, to improve the adjustability of the seat position without drilling more holes
  • Technological improvements around all of the bracketry to drastically extend the life and reliability of our chassis

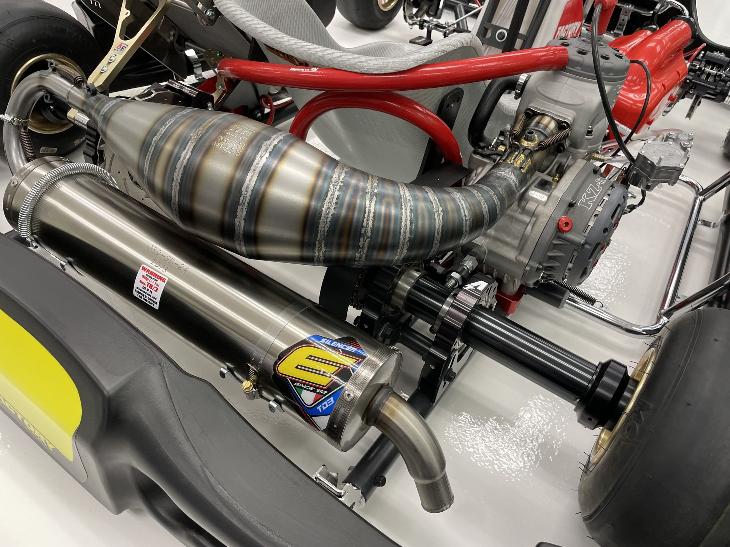

ENGINE: various engine kit options as follows

ENGINEStrokes/CCMax PowerMax RPMMax MPHStartFuelPiston Life
FZ-85
2-stroke 8524hp13,00075ManualVP ms98L
15+ Hours
FZ-1252-stroke 125
39hp
13,000
90+ManualVP ms98L15+ hours
IAME KZ 'SCREAMER IV'
2-stroke 125
45hp
15,000
100+ManualVP ms98L 4-6 Hours
TM KZ 'R2'2-stroke 125
45hp
15,000
100+ManualVP MS98L4-6 Hours
ROK SHIFTER2-stroke 125
38hp14,50090+ManualVP MS98L6-10 Hours
IAME 175 SSE
2-stroke 175
46hp
14,000100+Manual
VP MS98L
15-20 Hours


Seat Size Chart & Seat Position Form

Each Factory Kart comes standard with a GreyHound racing seat. The seat is manufactured in fiberglass and engineered using the latest ergonomic techniques. It also presents a controlled torsional stiffness. Made with a high quality silver woven material, the GreyHound seat provides great flexibility.

to complete your seat selection:

  • Review the below "Seat Size Chart" to determine your GreyHound racing seat sizing

Seat Size Chart:



Tire Options

If "Yes, please add tires to my order" option is selected, we will add a set of four (4) EVINCO tires to your order. Below is the list of tires models that come standard with each kart based on engine & chassis selection:

  • All kid karts                    Four (4) - Evinco blue tires 4.6
  • All cadet karts              Four (4) - Evinco blue tires 4.6
  • Daytona 190cc kart       Two (2) - Evinco blue tires 4.6
    KA100 Kart                         Two (2) - Evinco blue tires 7.1
  • All full size karts        Two (2) - Evinco red tires 4.6

                                                    Two (2) - Evinco red tires 7.1

If you would like to purchase a non-standard tire combination and/or additional tires, please note that we provide the option to purchase EVINCO tires individually. your custom tire selection can be added to cart separately from our shop.
